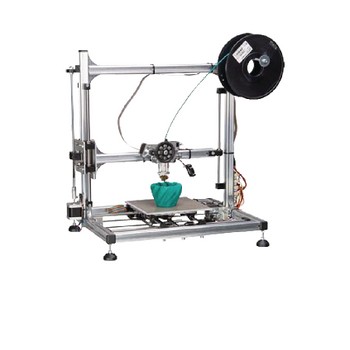

Drucker 3D Velleman K8200

Did you ever wanted to create your own products? Did you dream that your 3D creations became
real products? This is your chance with the Velleman K8200.
It’s a build it yourself 3D printer kit to print objects of maximum 20x20x20cm (7.87 x 7.87 x 7.87”)
using PLA or ABS fi lament 3 mm/0.12” plastic wire). It is an extremely fast, reliable and precise
printer even when printing at higher speeds. The K8200 is compatible with all free RepRap© software
and fi rmware. It is made out of aluminum profi les and is easy to assemble, it leaves room to
the user to freely alter the machine and modify it to their liking. The print bed is heated.

Specifications
- Linear ball bearings: 8 (0.31”) and 10 mm (0.39”)
- Technology: FFF (Fused Filament Fabrication) for PLA and ABS
- Power supply: 15 / 6,6A max.
- FTDI USB 2.0 to Serial
- Dimensions of printable area: 20 x 20 x 20cm / 7.87 x 7.87 x 7.87”
- Typical printing speed: 120 mm/s
- Maximum print speed: 150 to 300 mm/s (depending on the object to be printed)
- Extrusion nozzle: 0.5 mm (19685μin)
- Extrusion thermistor: NTC 100K
- Extruded aluminum profi les: 27.5mm (1.08”) wide
- Movement: 4 NEMA 17 stepper motors
- Resolution: Nominal mechanical resolution:
• X and Y: 0.015mm (590.55μin) (smallest step the printing plate can move in the X and Y direction)
• Z: 0.781μm (30.748μin) (smallest step the printing plate can move in the Z direction)
- Nominal printing resolution:
• Wall thickness (X,Y): 0.5 mm / 0.02”
• Layer thickness (Z): 0.20 – 0.25 mm / 0.0078 - 0.0098”
